Biblioteca Modelos

Biblioteca – Soluciones de Modelos

La biblioteca también contendrá soluciones para Visual Nand Reconstructor y PC3000 Flash. A veces, para resolver un caso es necesario utilizar las tres herramientas juntas.

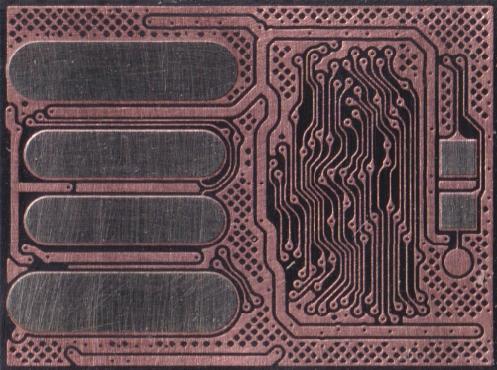

/biblioteca/Monolith/USB/Part5/Monolith-USB-106  45 3c 98 b3  1x2  Ref
Layout
  SM3259_41 1140_31 Xor 17fe_256 bb
Mix
  Input
    Order  0/1
  Software Bad Bytes
    Block  128
    Group  1
  Block Cut
    Block  0x900000/0x300000
Assembler
  Block Number
    Block Size   0x900000
  Actions
    Scan
    Find Bank Size
Comments
  Serg for forum 12391

  Split by Block 2, 0xD6E000 for each dump

  Put in folders:
  01_01 -> Split_0, Split_1
  01_02 -> Split_2, Split_3

  In each folder rename dump to 01_01.dump
  Copy FE folder
  Put Job_N.txt (attached)

  ECC Fix
  ECC Off
  Save Image

  Join by Page 2, 0x4000 - Split_0, Split_1 -> 01.image
  Join by Page 2, 0x4000 - Split_2, Split_3 -> 23.image

  Join by Dump  01.image, 23.image -> FINAL.image

  Can do with windows console:
  copy /b 01.image + 23.image FINAL.image
