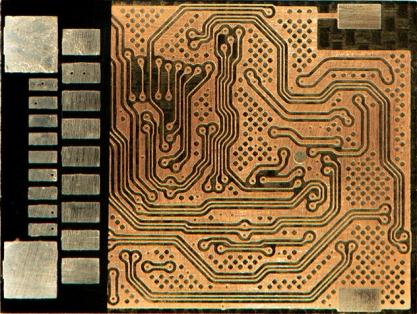

Inicio » Desarrollo » Biblioteca Modelos Biblioteca Modelos Biblioteca – Soluciones de ModelosLa biblioteca también contendrá soluciones para Visual Nand Reconstructor y PC3000 Flash. A veces, para resolver un caso es necesario utilizar las tres herramientas juntas./biblioteca/Monolith/USB/Part5/Monolith-USB-140 32 2c c3 08 1x1Layout SM3281_BN 32_1150 Xor 17fe bb Mix Input Order 0 Software Bad Bytes Block 3456 Group 4 Block Pair Block 0x3600000 Page 0x4000 Block Pair Block 0x6c00000 Page 0x8000 Assembler Block Number Block Size 0xd800000 Bank Space 0x4000 Actions Scan Comments By JeremyB First boot NAND chip with VccQ = 1.8v then boot Vcc with 3.3v from reader Adjust VccQ as needed, I used 2.04v and got 100% read This is a NV-DDR3 chip, Full ID is 32 2c c3 08 32 e6 Case used FFFF for BB but you must manually mark FF's, You can't use Auto FF Use Chip.txt below. Chip.txt: // Chip Company Micron Name MT29F512G08EBLCE3W ID code 32 2c c3 08 // Structure Bus 8 Banks 1 x 64GB Page 18592 Block 0x3d47000 Blocks 0x548 // Read Cmd 05_E0 Col 2 Row 3 DDR true // Special Skip_Mask_1 0xfff Skip_Page_1 0xd80
