Biblioteca Modelos

Biblioteca – Soluciones de Modelos

La biblioteca también contendrá soluciones para Visual Nand Reconstructor y PC3000 Flash. A veces, para resolver un caso es necesario utilizar las tres herramientas juntas.

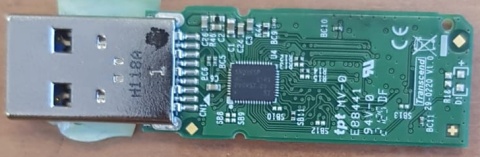

/biblioteca/SM/SM3265/SM3265P-AC  45 3e 98 b3  1x1  Ref
Layout
  SM3265 1140_31 Xor 14d6 bb
Mix
  Input
    Order  0
  Software Bad Bytes
    Block  1536
    Group  1
  Divide
    Field  Block Renum
    Value  0x2
  Block Renum
    Block  0x1800000
    Page   0x4000
  Block Cut
    Block  0x1080000/0x780000
Assembler
  Block Number
    Block Size   0x1080000
    Bank Space   0x4000
    Banks        00 / 0x000 / 0x7ff
  Actions
    Scan
Comments
  Split by Block 2, 0x1ADC000

  Create folders Split_0, Split_1
  Put each dump and FE/Chip.txt in folders

  Each folder can have different layout
  Block Cut can be different

  Save Image for each folder

  Join by Page 2, 0x4000 to make Final.image
