Biblioteca – Soluciones de Modelos
La biblioteca también contendrá soluciones para Visual Nand Reconstructor y PC3000 Flash. A veces, para resolver un caso es necesario utilizar las tres herramientas juntas.
Layout

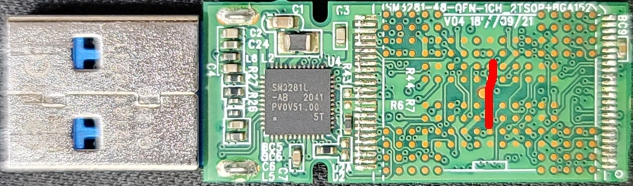

SM3281_BN 32_1140 Xor 17fe bb
Mix
Input
Order 0/1
Software Bad Bytes
Block 1536
Group 1
Block Cut
Block 0x1200000/0x600000
Assembler
Block Number
Block Size 0x1200000
Bank Space 0x4000
Banks 00 / 0x000 / 0x7ff
Actions
Scan
Comments
Serg for forum 12594
Split by Block 2, 0x1ADC000
Put each dump in separate folder
01_01.dump -> Split_0, Split_1
02_01.dump -> Split_2, Split_3
Put here FE/Chip.txt
Layout for each folder will be different
Make image for each folder
Save 4 images
Make Join by Page 4, 0x4000
99% files is OK
