Biblioteca Modelos

Biblioteca – Soluciones de Modelos

La biblioteca también contendrá soluciones para Visual Nand Reconstructor y PC3000 Flash. A veces, para resolver un caso es necesario utilizar las tres herramientas juntas.

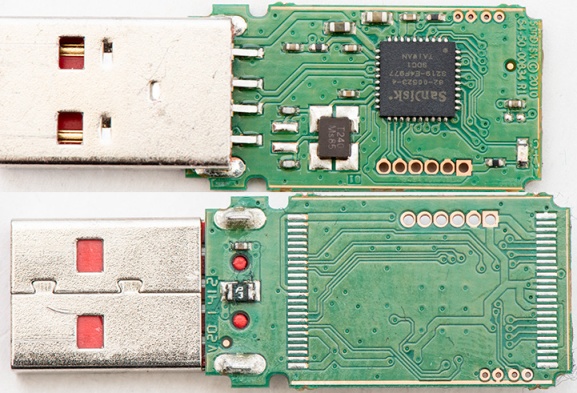

/biblioteca/SanDisk/82-00523-4/82-00523-4  45 4c a8 92  1x1
Layout
  20-82-00511-1 14_2048_230 Xor C634_32I_WL
Mix
  Input
    Order  0
  Cut Bad Bytes
  Block Pair
    Block  0x204000
    Page   0x2000
  Divide
    Field  Block Number
    Value  0x3
  Block Cut
    Block  0x400000/0x8000
  Divide
    Field  Block Rotate
    Value  0x20
  Block Rotate
    Block  0x158000/0x158000/0x150000
    Page   0x4000
Assembler
  Block Number
    Block Size   0x400000
    Bank Space   0x1000
    Banks        00 / 0x000 / 0xfff
  Actions
    Scan
Comments
  Vcc needs to be manually connected to all applicable pins
  (eg: WP, Pin 45, etc) (See: Picture) using monolithic adapter
  to get a good read otherwise all data is corrupt.
  Set Bank Size to 0x1000, Filter out Erased Blocks & Auto Conflicts
  Perfect Recovery
